Logbook#

Each change to the IT documentation is noted in the logbook by i-doit. This way it is easy to keep track of the lifecycle of the IT documentation.

Global Logbook#

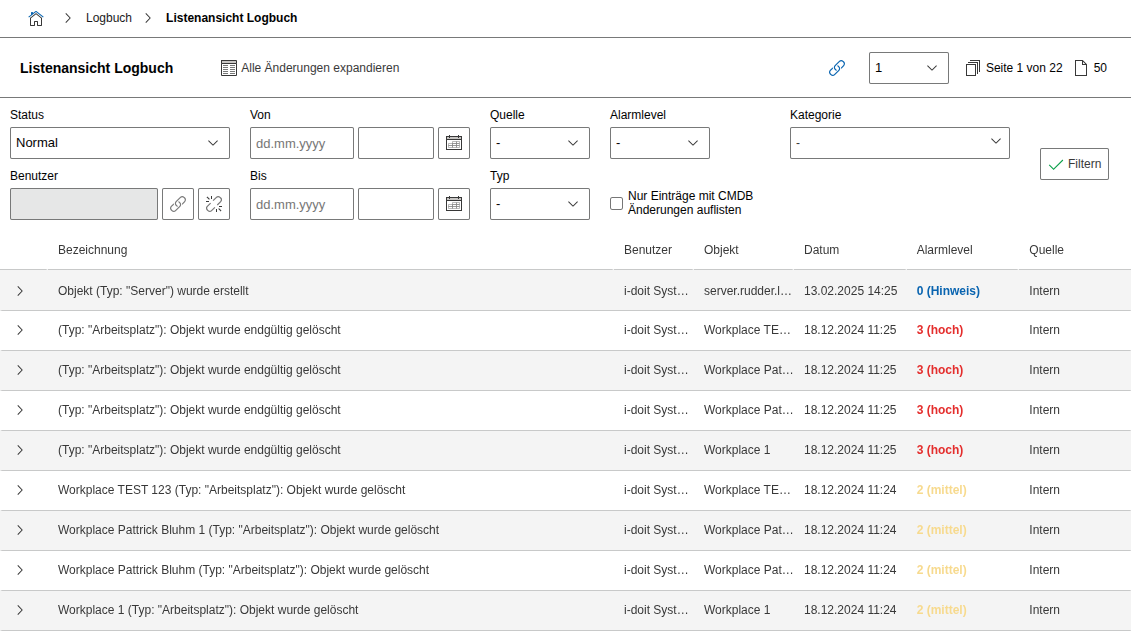

The logbook in which all changes are incorporated is located at Extras → CMDB → Logbook. There you can filter the entries by various parameters. If possible, an entry also contains the specific changes (Which value was changed and in what respects?).

Global Logbook

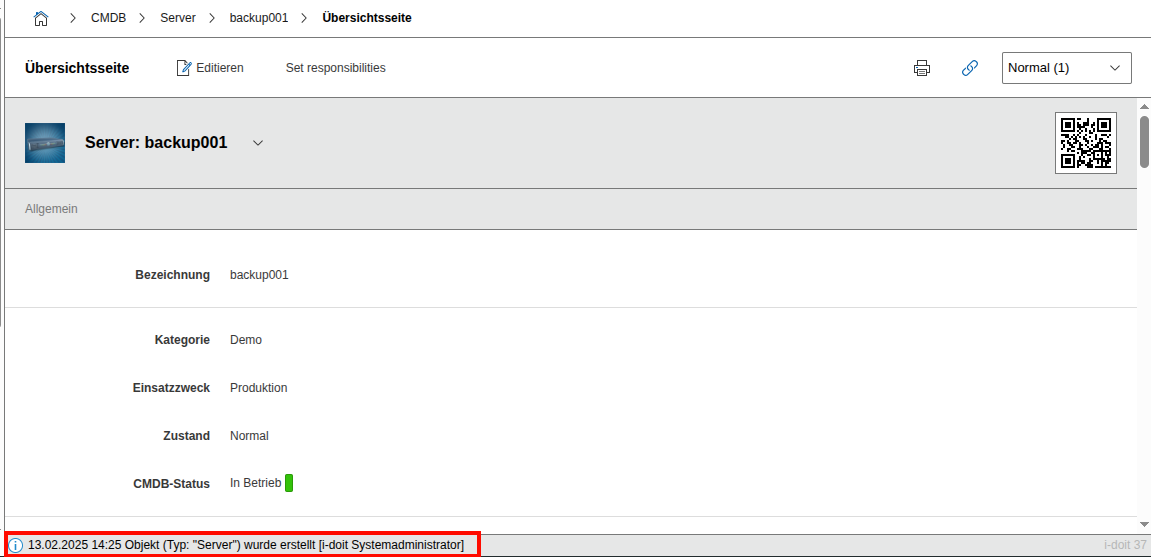

The latest change can be tracked in the bottom area of each page.

latest change

Logbook per Object#

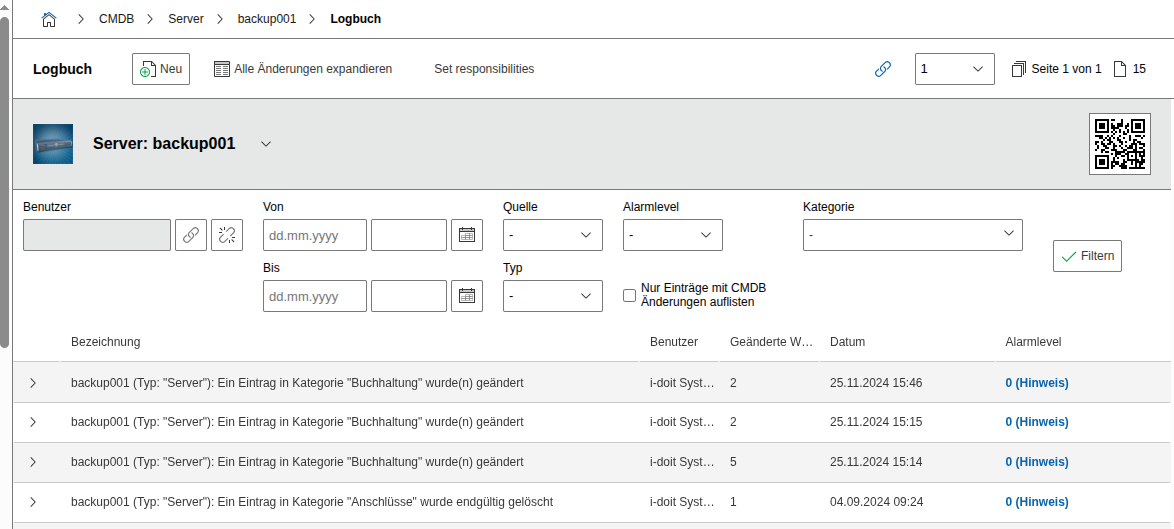

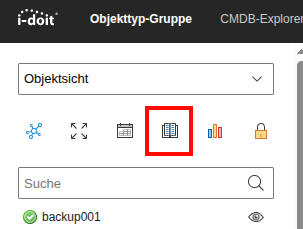

The logbook can not only be displayed as global but you can also limit the view to a single object. The category Logbook is assigned to each object type in a fixed way. The logbook can be accessed in the Object view via the book-icon above the category tree.

Logbook per Object

The filter functions and level of detail correspond to those of the global logbook.

filter functions

Logbook per Service#

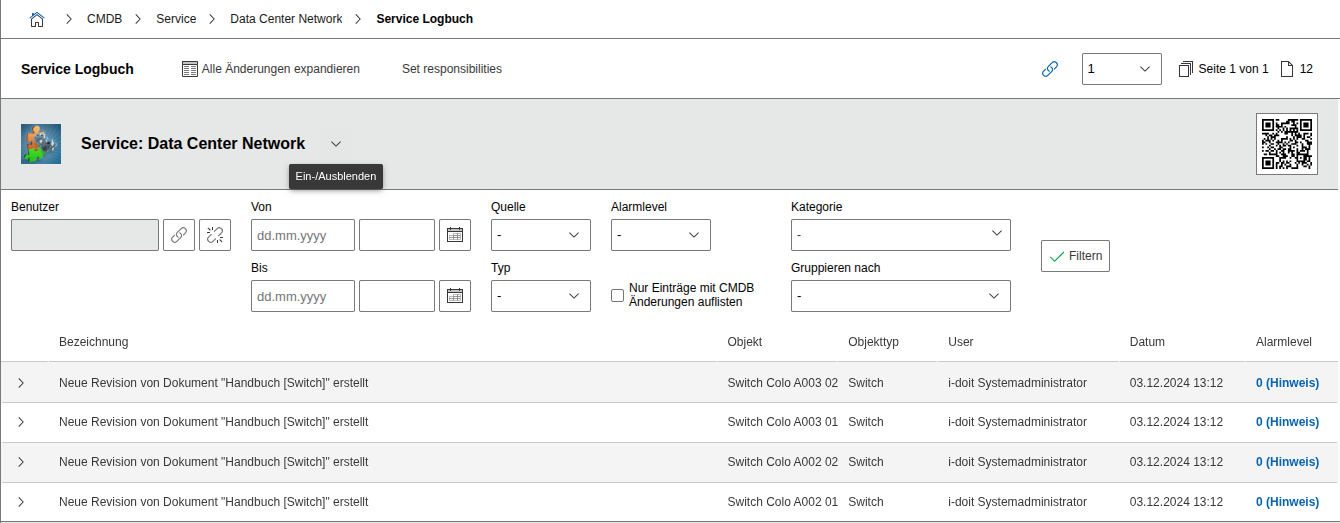

For each service that has been modelled in i-doit there is a logbook, which contains the changes to all service components (or sub-services). The category is called Service Logbook and can be added to those object types which represent these services via the Service category.

Logbook per Service

Configuration of the Logbook#

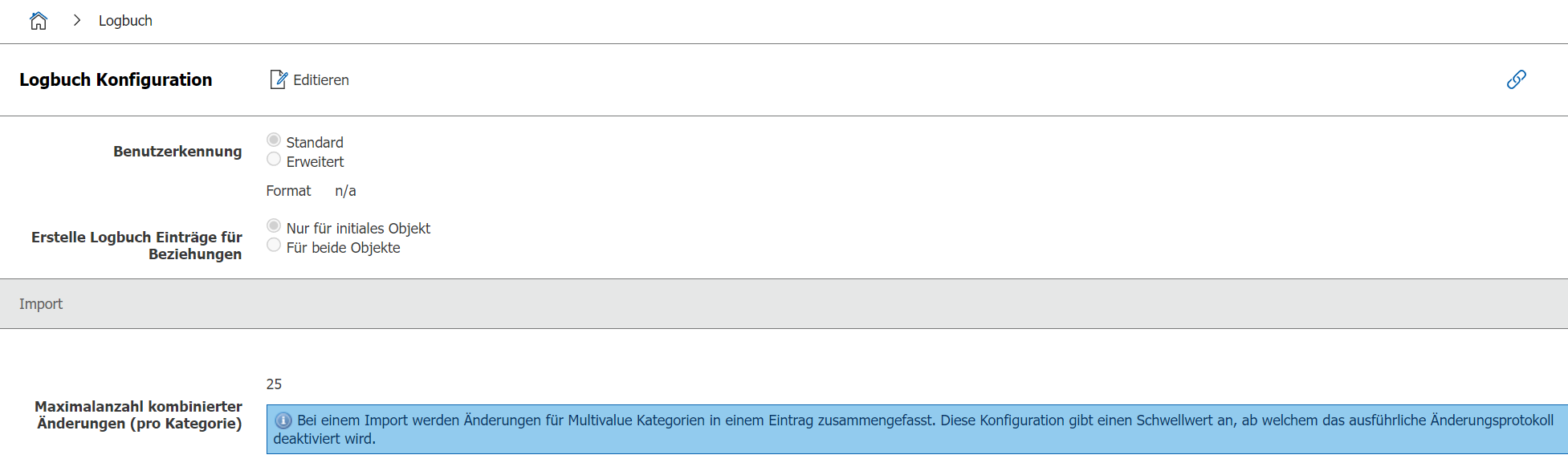

You can find the configuration of the logbook at Extras → CMDB → Logbook → Logbook configuration.

Configuration of the Logbook

Changes do not affect existing entries.

The Username that is shown in each entry can be changed in the configuration. The object title of the person object is considered as default; in most cases it consists of first name and surname.

Anonymization

Is the Username changed to a fixed value, for example to "Anonymous", the logbook is anonymized. The result is that you can't retrace who made which changes anymore.

The option for the Maximum amount of combined detailed changes causes simultaneous changes to be summarized. As a result the level of detail is decreased but on the other hand this effects an increase of performance for imports.

Delete Logbook entries from purged objects completely#

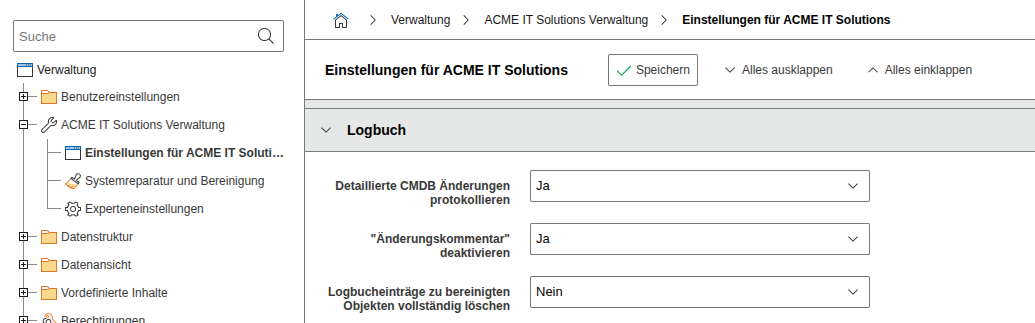

This configuration option for the logbook can be found under Administration → Tenant management → Settings for Tenant → Logbook → Delete Logbook entries from purged objects completely.

logbook-entries-purge

This setting is set to No by default. If you set this setting to Yes, the logbook entry of the object will also be deleted after purging the object itself.

Activation/ Deactivation of the Logbook#

You can activate/ deactivate the logbook at Administration → Tenant management → Settings for tenant → Logbook → Log detailed CMDB changes.

Custom Entries#

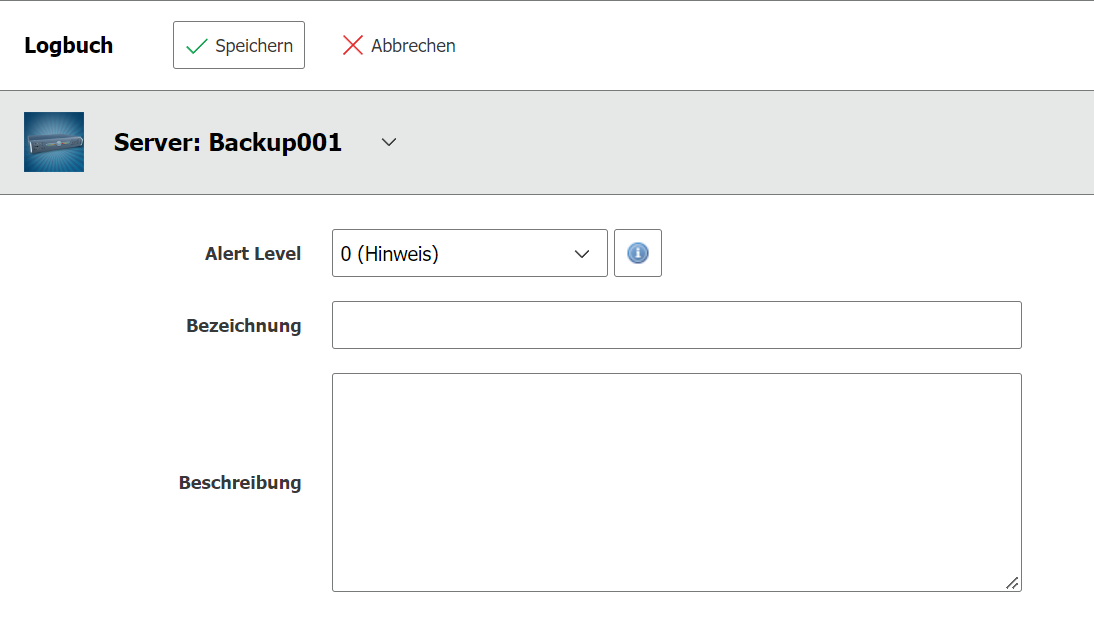

You can generate a new entry in the logbook for each object. Activate the Logbook category within the object (see above). Then you can display the form for a new entry via the New button. You can set Alert level, Message and Description according to your requirements. The entry appears in the logbook after clicking the Save button.

Custom Entries

Entries from Third-Party Systems#

The logbook accepts new entries from third-party systems, for example through imports, service desks, network monitoring and the API.

Archiving and Restoring Older Entries#

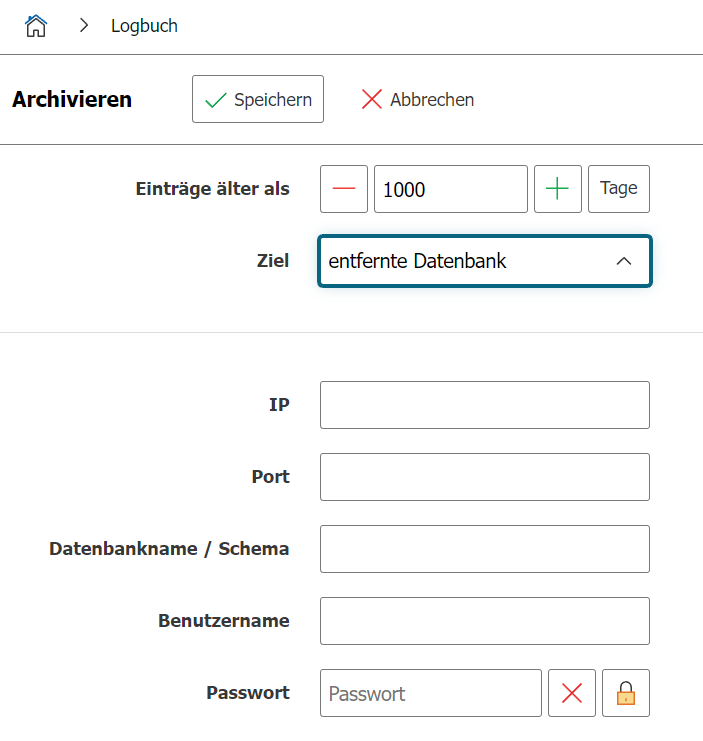

Whether older entries are to be archived or not can be configured via Extras → CMDB → Logbook → Archive. Here you need to state how old (in days) these entries have to be in order to be archived. This feature is helpful if the logbook is very big and the evaluation is impaired by long loading times. Archived entries are stored in a separate database table. This table is either created on a respective tenant database or on a third database instance.

Archiving and Restoring Older Entries

Archiving is performed via the i-doit Console. This step can therefore also be automated. A corresponding example of a call and a list of parameters can be found in the corresponding article for the logbook-archive option.

Example:

1
sudo -u www-data php console.php logbook-archive --user admin --password admin --tenantId 1

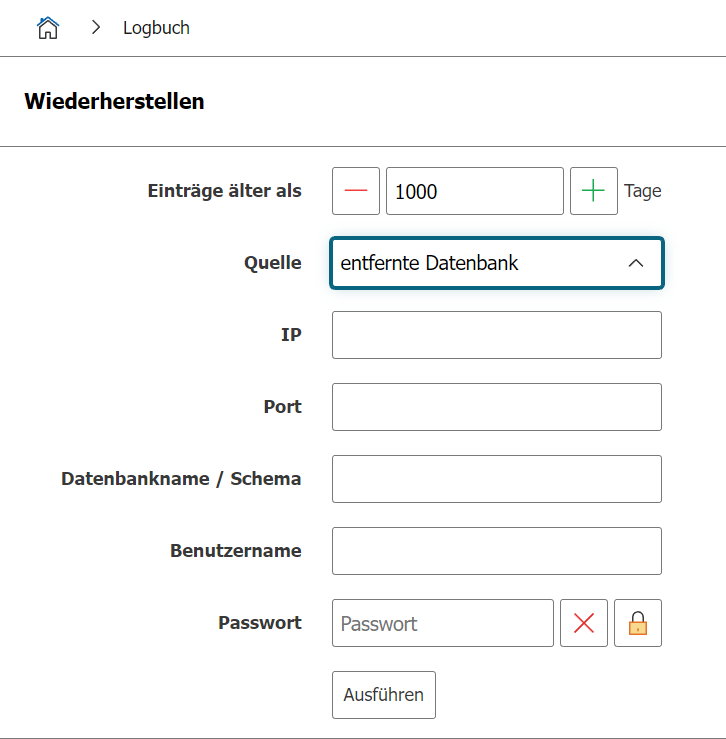

Archived entries can be restored for further evaluation. This item can be found under Extras → CMDB → Logbook → Restore.

Archived entries

Creation Date / Date of Change#

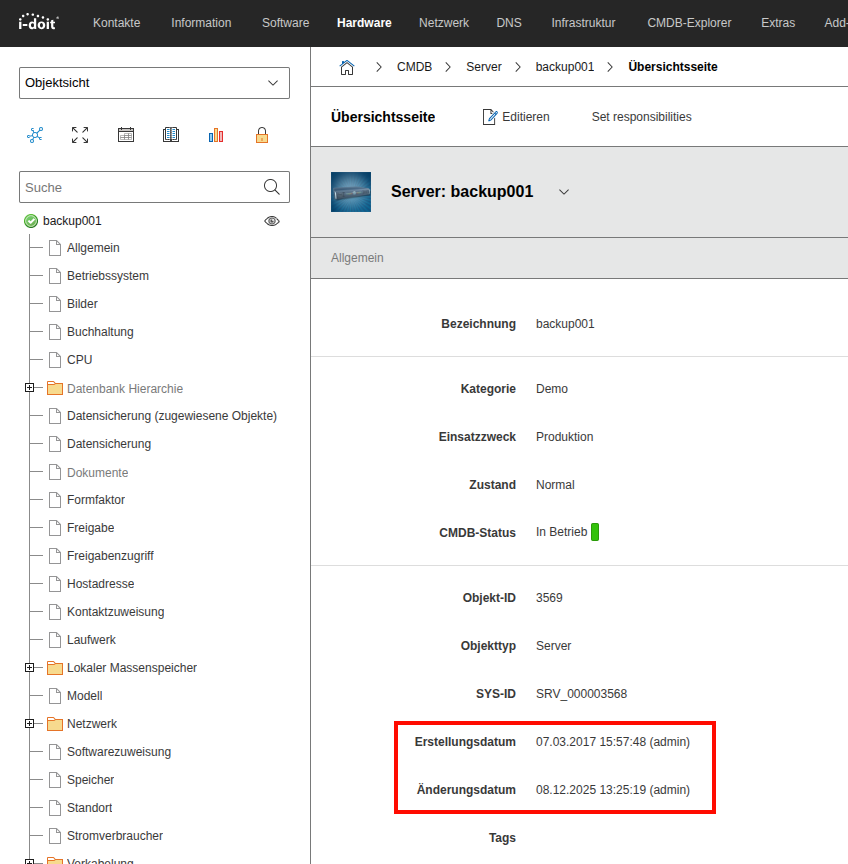

Any changes to objects (create, change, archive, delete, restore) not only cause an entry in the logbook but also causes changes to the attributes Creation date and Date of change in the General category which is assigned to all object types.

Creation Date

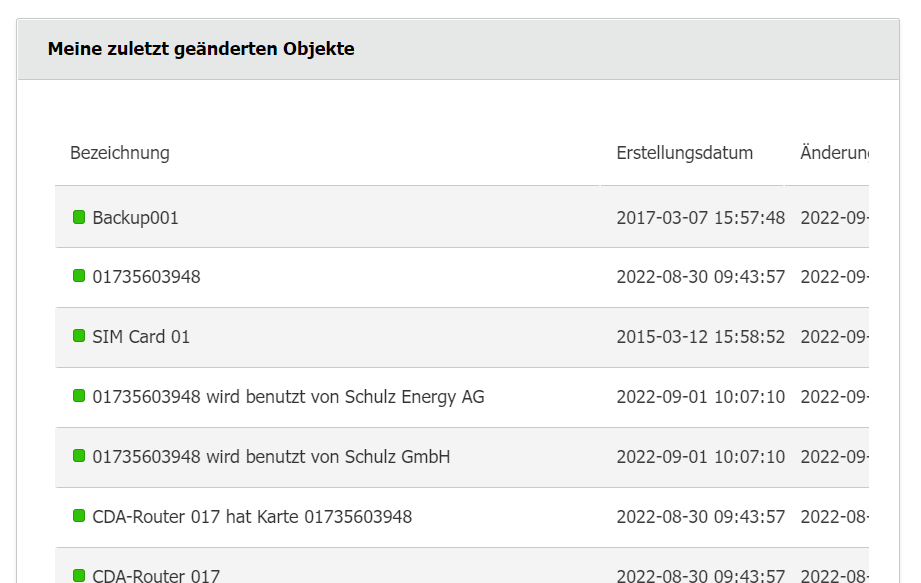

The widget My last changed objects listing the latest changes to objects can be added to the dashboard.

Date of Change

Set Permissions#

The authorisation system of i-doit allows the configuration of persons (or person groups) that are allowed to have reading access to the logbook. For example, you can specify that only i-doit-administrators have the authorisation to track changes.
