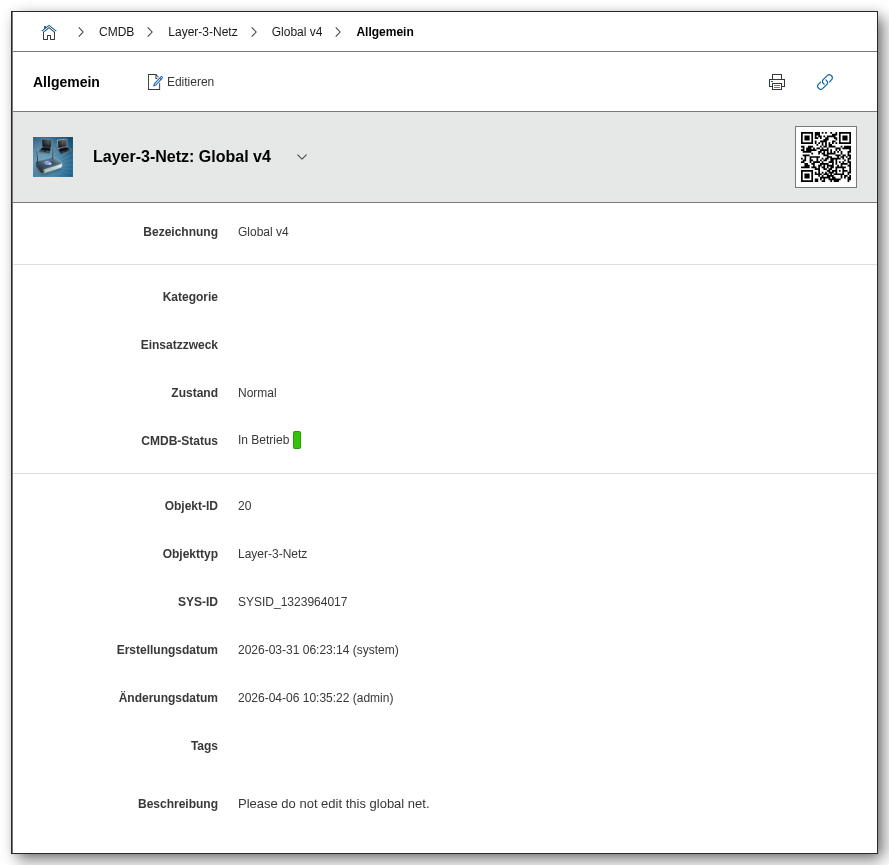

Object Type: Layer 3 Network#

The Layer 3 Network object type documents IP subnets (IPv4 and IPv6). Each subnet object represents an IP address range and serves as the basis for IP address management in i-doit.

Usage#

• IP Address Management: Document all IP subnets with address, mask, and gateway. i-doit shows occupied and free addresses within the network.
• Object Assignment: Device objects receive their IP addresses through assignment to a Layer 3 network.
• VLAN Linking: Connect Layer 3 networks with Layer 2 networks (VLANs) for complete network documentation.
• Supernet Hierarchy: Assign subnets to a parent supernet for a clear address space hierarchy.
• Reports: Create reports on IP utilization, free addresses, and assigned devices per subnet.

Assigned Categories#

Global Categories#

• Service Assignment
• Accounting
• General
• Logbook

Specific Category#

The specific category for this object type is Net. The specific category for this object type is IP list. The specific category for this object type is DHCP. The specific category for this object type is Network Zone.
