Reports in the ISMS Add-on#
This page describes the reports provided with the ISMS add-on in i-doit. A general introduction to reports and their location in i-doit can be found in the Report Manager.
Quick Overview
- The add-on delivers one variable report and nine report views of the type ISMS.
- All content is designed to be quickly filtered and customized in practice.
- If the option is enabled, the views can be filtered by location rights (see Optional Settings in the configuration).
Installed Reports and Views (Overview)#
| Type | Name | Purpose | Important Filters/Interactions |
|---|---|---|---|
| Variable Report | ISMS Risk Assessment (Group) | Shows risk assessments of all object groups to which the object, from which the report was called, belongs; freely customizable in the query editor. | Bound to object type category "ISMS Risk Assessment (Group)"; duplicable and customizable (e.g., for service components). |
| Report View | ISMS Risk by Risk Class | Lists objects/object groups with risk assessments when the implementation status is "Unprocessed". | Filters: Risk Class, Scope, Location (location filter). |
| Report View | Statement of Applicability (SoA) | Structure of all measures from Annex A (if available) by chapters/subchapters including applicability, justification, and implementation status; shows assigned SoA measures below the respective Annex A measure. | Considers location rights (if enabled). |
| Report View | SoA Completeness Check | Like SoA statement, additionally color-coded to indicate whether measures are sufficiently documented. | Considers location rights (if enabled). |
| Report View | ISMS Risk Matrix | Matrix before and after risk treatment; axes from the defined evaluation criteria. | Clicking on a cell opens filtered ISMS Risk Assessment; Filters: Scope, Location. |
| Report View | ISMS Risk Assessment | Complete detailed view of all risk assessments (IDs, object, threat, vulnerability, owner, evaluations, impacts, likelihood, risk level, measures, treatment, responsible persons, resources, dates, prioritization, values after treatment, residual risk). | Filters: Scope, Location. |
| Report View | ISMS Risk Treatment Plan (RTP) | Focus on risk treatment according to ISO 31000: Threat → affected objects → measures; including justification, risk owner, urgency, latest implementation date. | Filters: Scope, Location. |
| Report View | ISMS Scope | Shows all objects (with object type and location) whose ISMS relevance = "Yes". | Filters: Scope, Location. |
| Report View | ISMS Risk Assessment (object-based) | Like "ISMS Risk Assessment", additionally filterable by individual objects; offers CSV export. | Object filter; CSV export. |
| Report-View | ISMS Residual Risk by Level | Analog representation of "ISMS Risk by Level", but by measures (residual risk). | - |
Details and best practices#
Variable Report: ISMS Risk Assessment (Group)#
Purpose. Risk assessments of all object groups for the currently selected object. Ideal for quickly overviewing group-based risks.
Customizability. The report is freely editable in the query editor. A typical pattern is to duplicate it for service components: Create "ISMS Risk Assessment (Service Component)" and adjust the condition:
- Select category "Service Components (Service)"
- Set the field placeholder Object ID for the attribute "Assigned Object"
Note
The report is bound to the identically named custom category and can be assigned to different object types.
Report-View: ISMS Risk by Risk Class#
Purpose: Overview of risk levels with implementation status = "Unprocessed".
Filter: Risk Class, Scope and Location (Location filter restricts to objects below the selected location).
Report-View: Statement of Applicability (SoA)#
Purpose: Complete, hierarchical view of measures from Annex A (chapters/subchapters), including applicability, justification (inclusion/exclusion) and implementation status. Assigned SoA measures are displayed below the Annex A measure; at the end follows the complete list of all SoA measures.
Rights: Considers location rights if activated in tenant settings and the measures have a location.
Report-View: SoA Completeness Check#
Purpose: Audit-ready overview of whether all measures are sufficiently documented (color marking per measure).
Rights: Considers location rights if activated.

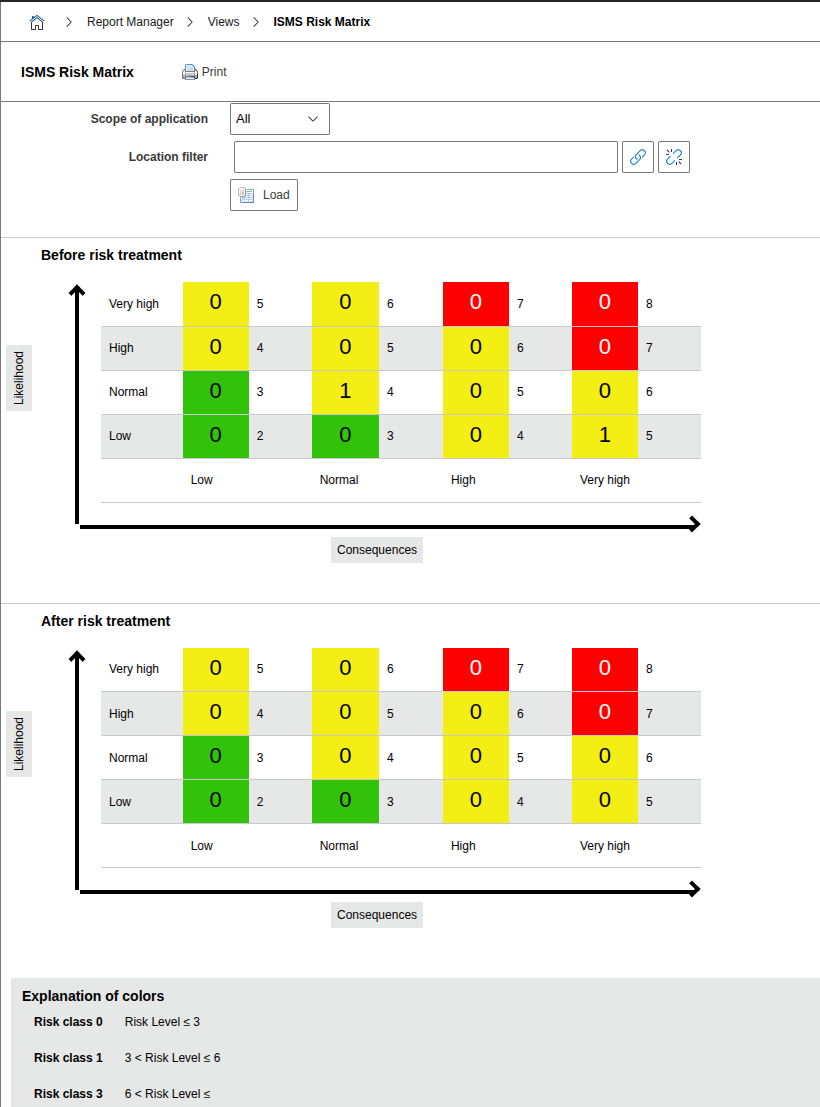

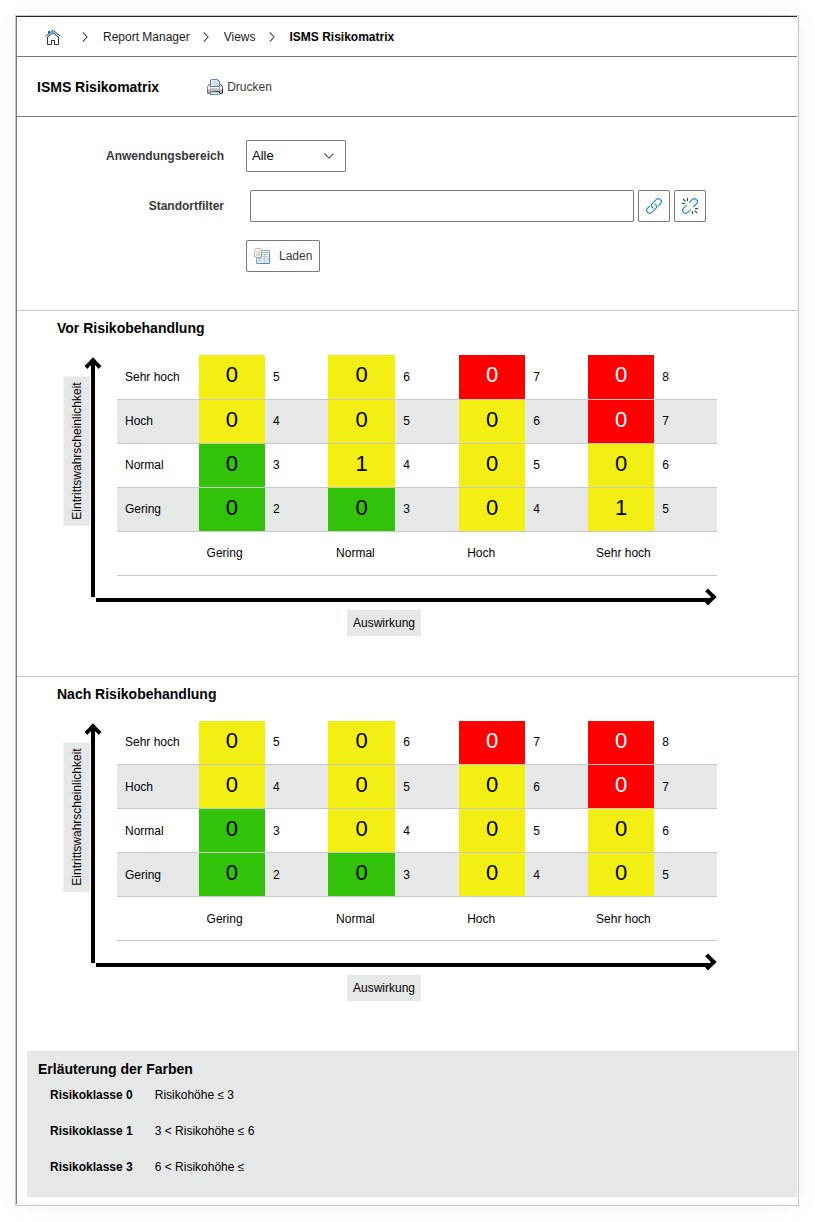

Report-View: ISMS Risk Matrix#
Purpose: Visualizes the risk situation before and after treatment. Axis labels are derived directly from the evaluation criteria.
Interaction: Clicking on the number in a matrix cell opens the Report-View "ISMS Risk Assessment" filtered to the affected combination of Likelihood and Impact.
Filter: Scope and Location.
Tip
The axes and colors are derived from the evaluation criteria, risk formula, and risk classes defined in the Configuration. Adjust these first to use the matrix effectively.
Report-View: ISMS Risk Assessment#
Purpose: Complete detailed view of all risk assessments in i-doit, suitable as a worklist for risk owners and auditors.
Content (Excerpt): ID of the assessment, affected object type/name, threat, vulnerability, value owner, risk owner, evaluations of the damage scenarios and resulting impact, likelihood, risk level (color-coded), existing measures, risk treatment, responsible persons, required resources, implementation date, prioritization, evaluations after treatment and residual risk (color-coded).
Filter: Scope and Location.
Report-View: ISMS Risk Treatment Plan (RTP)#
Purpose: Implementation-oriented view, assigns threats to the affected objects and measures; shows risk treatment (usually values according to ISO 31000), justification, risk owner, urgency, and latest implementation date.
Filter: Scope and Location.
Report-View: ISMS Scope#
Purpose: Listing of all objects (including object type and location) where ISMS relevance = "Yes" is set, ideal for scope definition and audits.
Filter: Scope and Location.
Report-View: ISMS Risk Assessment (Object-Based)#
Purpose: Focused view on individual objects with the same information as the general risk assessment.
