LDAPS Debian Configuration

Please create a complete backup before making any changes to an interface/import. If the result is not satisfactory, the backup can then be restored

This guide shows you how to set up an encrypted LDAPS or STARTTLS connection between your i-doit server (Debian) and Active Directory. To do this, you export the certificate from the LDAP server and add it to the certificate store of your i-doit server.

Step 1: Export Certificate on the LDAP Server#

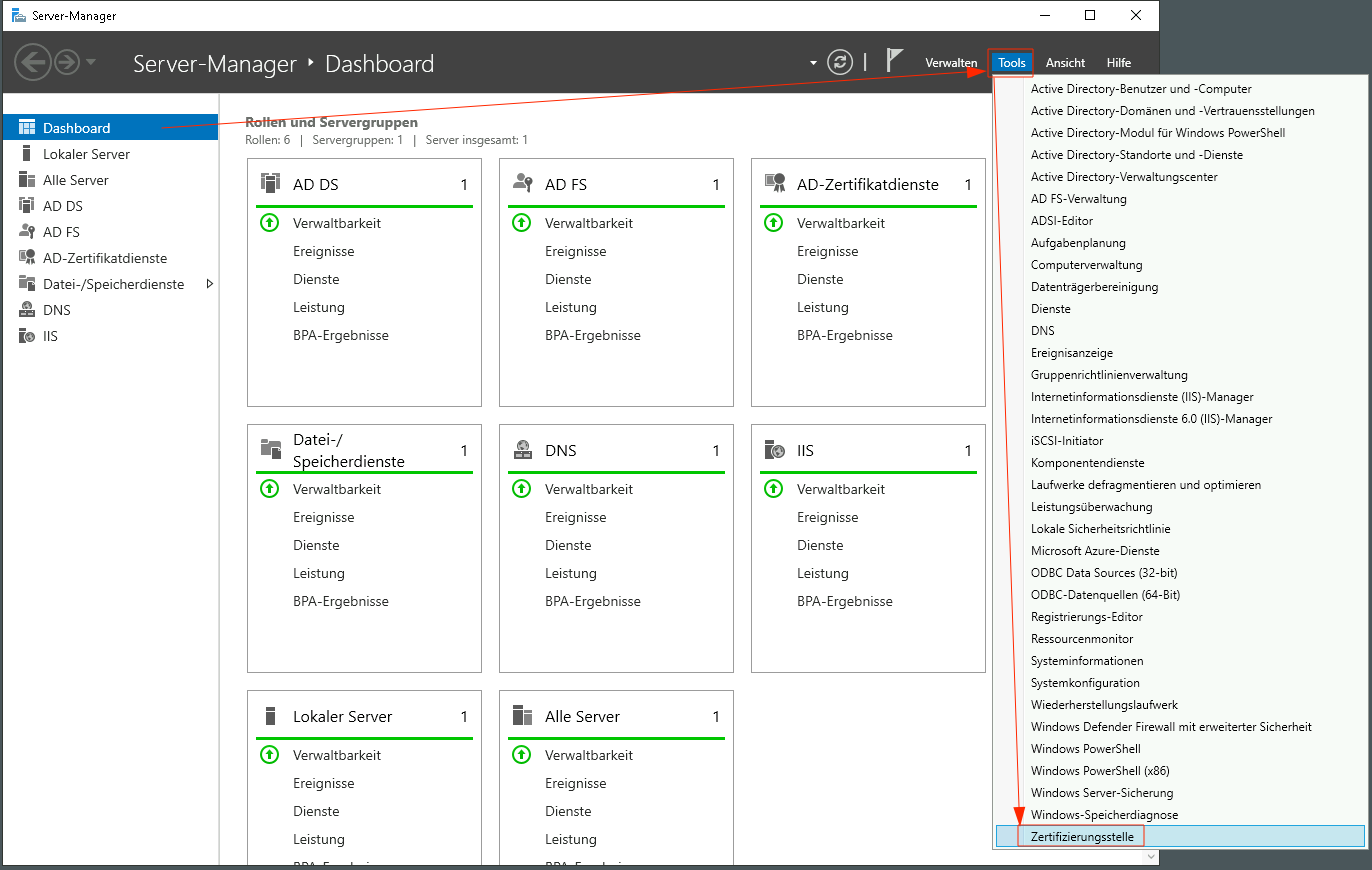

Log in to the LDAP server, which typically also contains the certificate authority. Open the corresponding MMC snap-in or select the Certificate Authority option in Server Manager.

Server Manager

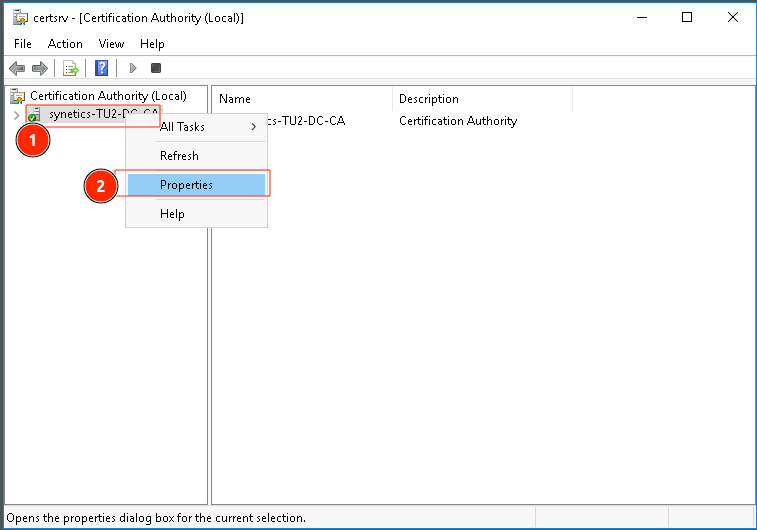

Select the properties of the certificate authority.

Select properties

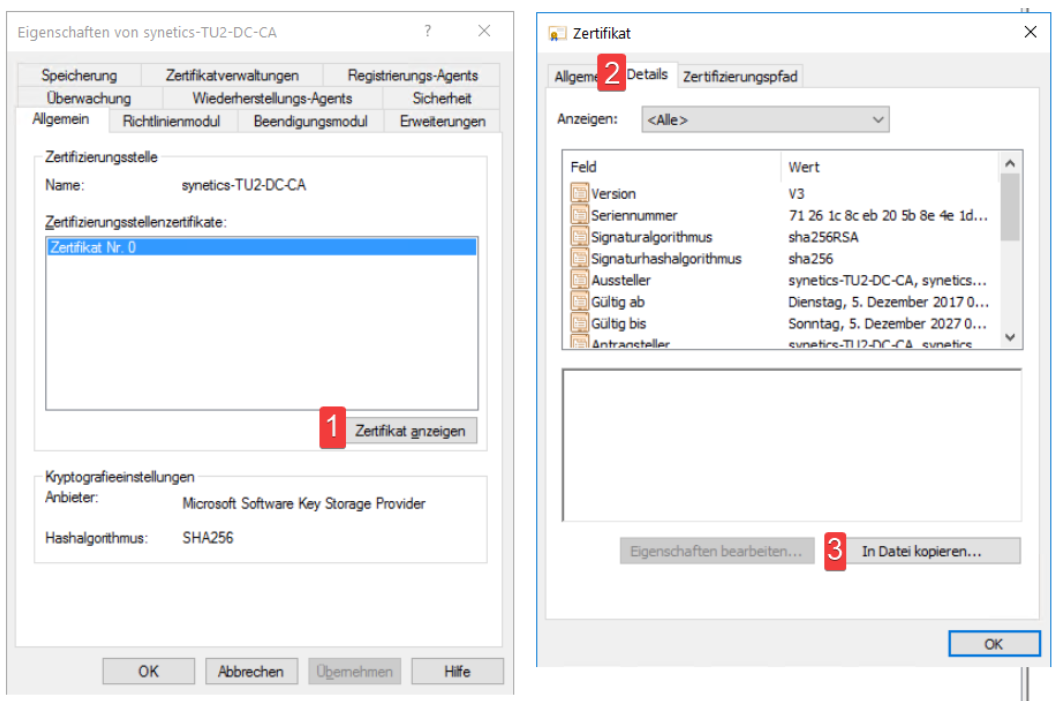

Display the certificate (1), select Details (2), and then copy it to a file (3).

Display and copy certificate

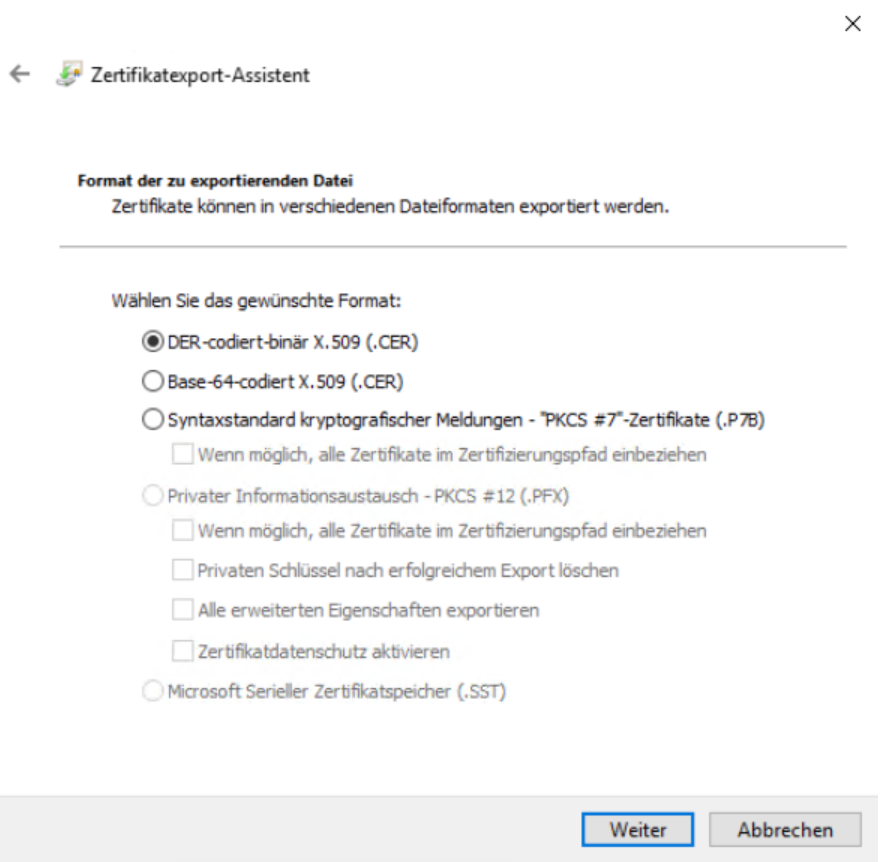

Keep the DER format selected.

Keep DER format selected

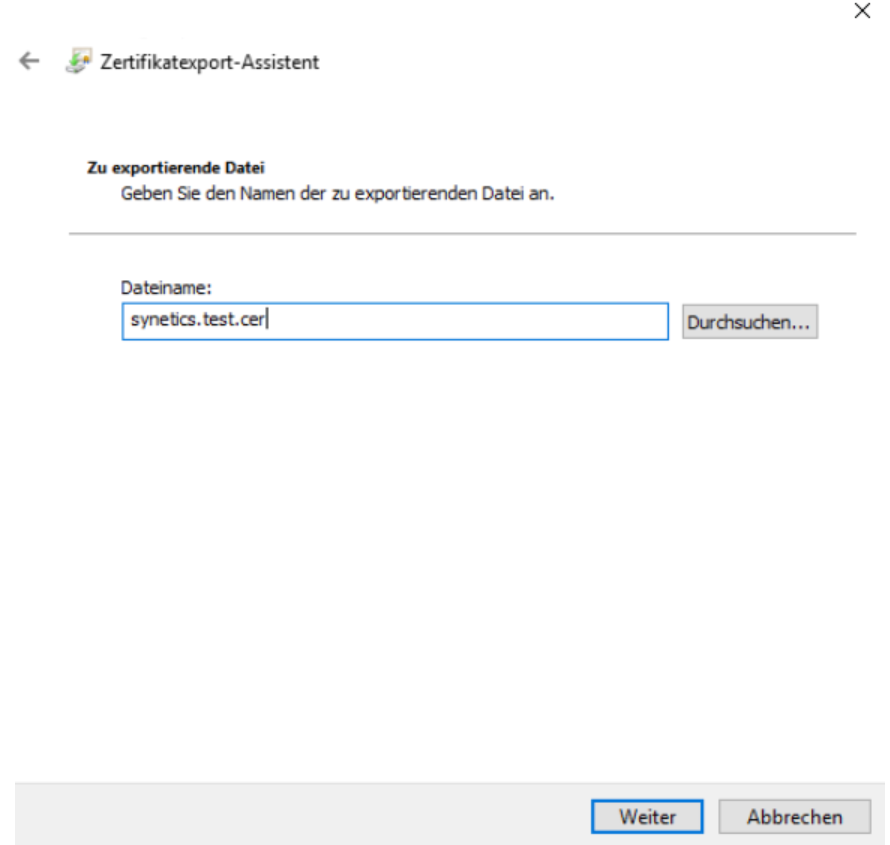

Choose a file name and directory.

Choose name and directory

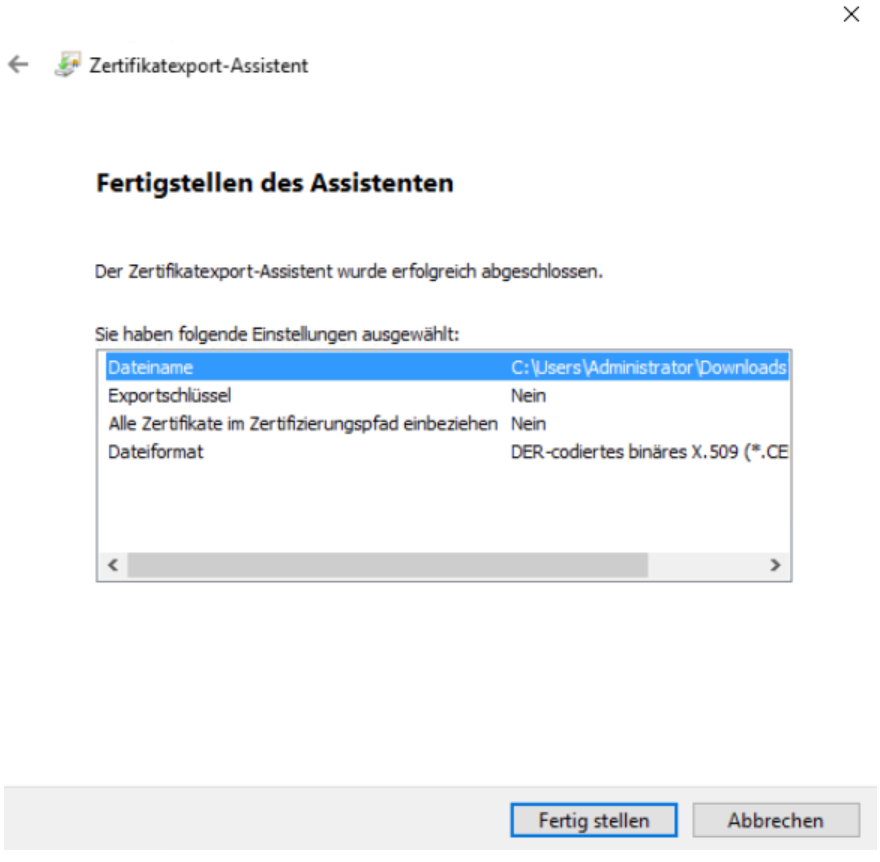

Complete the export wizard.

Complete the export wizard

Step 2: Set Up Certificate on the i-doit Server#

Copy the exported certificate to your i-doit system (in the example to /tmp/). Then install openssl if not already present:

1
apt install openssl

Convert the certificate to PEM format:

1
2
openssl x509 -inform der -outform pem -in /tmp/synetics.test.cer \
-out /usr/local/share/ca-certificates/synetics.test.crt

Finally, update the certificate store and restart Apache:

1
2
update-ca-certificates
service apache2 restart

The output file must have the .crt file extension, otherwise it will not be considered by the update-ca-certificates command. If correctly adopted, the certificate must be visible under /etc/ssl/certs/.
